3 HP 4" Submersible Well Pump Complete Set Incl Motor, Pump-end and Control Box. 360ft Maxhead, Rated 30gpm, 40gpm Max. 1-phase 230v, 60Hz, 2.2kw, 3450 rpm, 1 Year Warranty, (Tuhorse TH4-030-11)

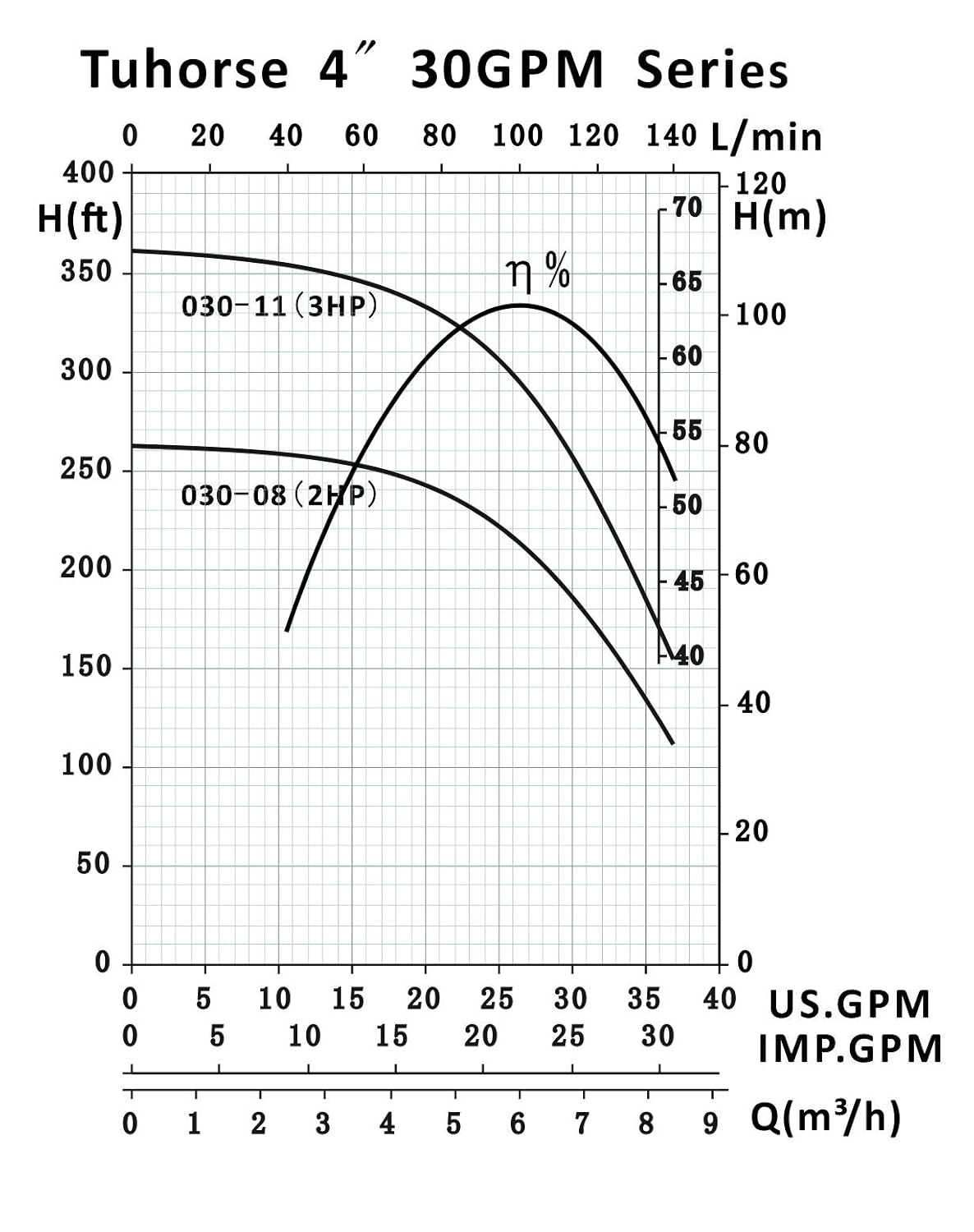

**To be used for up to 320 feet head open flow or up to 220 feet in a system with a pressure tank ** This complete submersible well pump set includes a 11 stage pump-end, a 3HP heavy duty oil cooled submersible motor, and a dual capacitor metal cased control box equipped with motor overload protectors. Rated Flow: 30GPM Flow vs TDH: 35GPM at 180ft., 30GPM at 250ft., 25GPM at 300ft. 20GPM at 330ft. Connector terminal inside the control box accepts up to AWG #6 wire. This pump runs on 230V, 60Hz, Single Phase Power, and the motor uses 3 wires + 1 ground wire. Net weight 42Lb.(20Kg); 1 year warranty. external check valve(not included) is required in a water tight system but is not required for free flow applications.

• Just slightly under 4” diameter, fits 4" and larger wells
• 1.5 inch NPT brass outlet (discharge)
• 11 Stages. Cut off head 360 feet. 30GPM at 250 feet. Good for sprinkler systems
• Metal cased control box includes a 120uF start and 40uF run capacitor
• Meets NEMA industrial standards, manufactured under ISO 9001:2000, conforms to IEC34-ICE standards.
